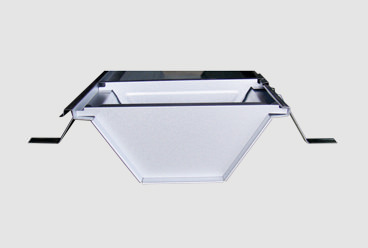

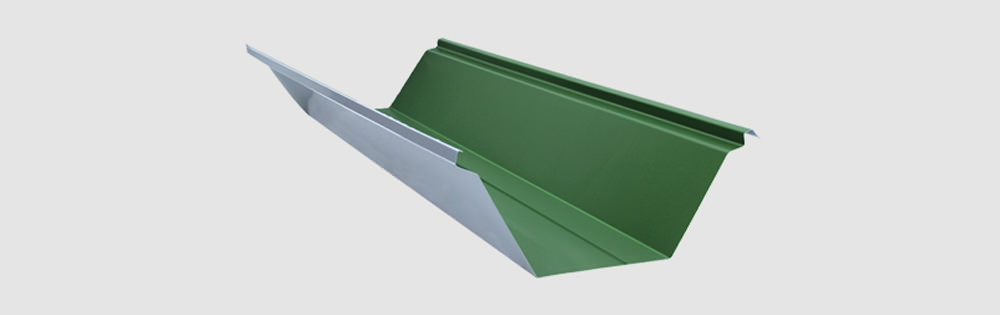

ZAP-167™

Heavy Duty Standing Seam Roofing System (Japanese Technology)

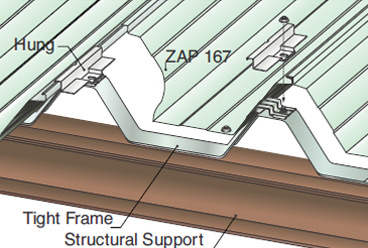

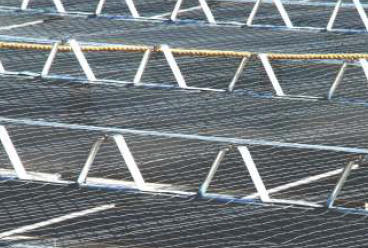

ZAP-167™ roofing system is a proven and most sturdy Japanese technology. It is a screw less standing seam profile which is 167mm deep, supported on tight frames and can be formed up to single length of 100mts. Available in Galvalume and color coated steel in various colors. Aesthetical and robust looking. 80000 sqm installed for prestigious projects like Maruti Suzuki, Bridge Stone etc.

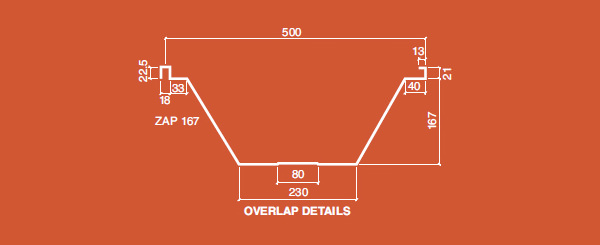

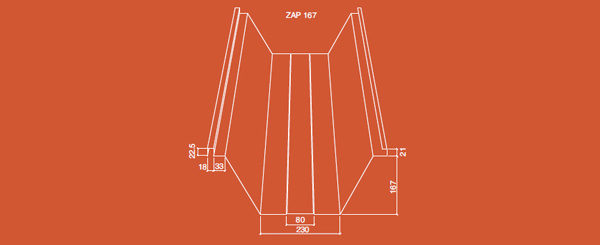

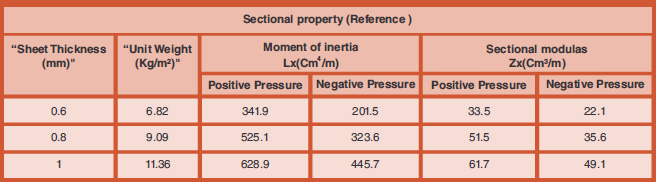

Sectional property (Reference)

*Please refer to the color shade card for colors. Technical details available on request.

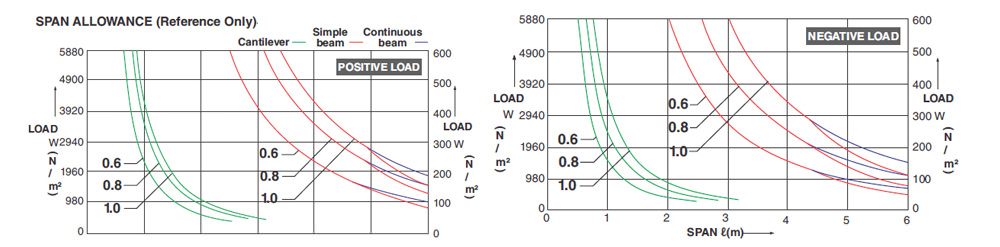

Span Allowance (Reference Only)

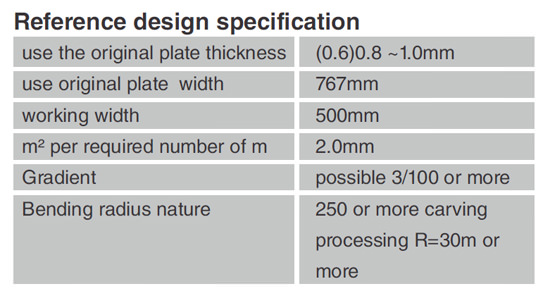

Reference Design Specification
