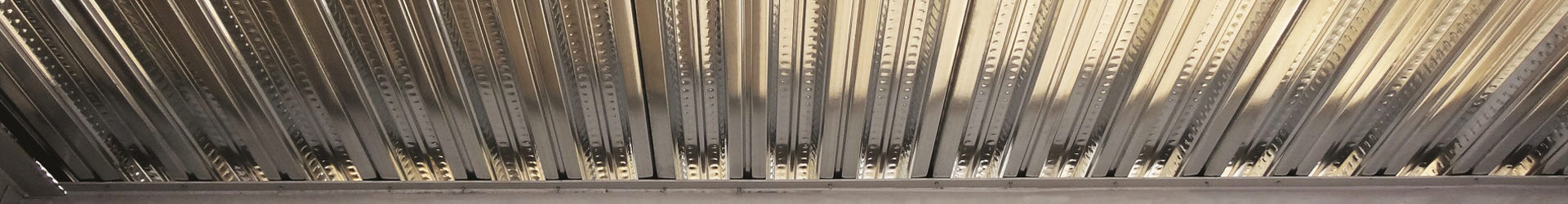

 'Composite deck floors' or 'composite slabs' provide an effective and economical floor slab in a range of building types. They comprise profiled steel decking, in situ-concrete and mesh  reinforcement. The steel decking acts as a permanent formwork to the concrete during construction and then acts compositely with the concrete to produce a strong and stiff long span  floor. Temporary propping is not required in most applications.

Load capacity

 Composite deck floors are robust and achieve excellent load carrying capacity due to the shear-bond developed between the embossed decking and the concrete slab. Load capacities  upto 15kN/m2 can be achieved, which can be enhanced by additional reinforcement in the slab. Light mesh reinforcement is generally used for fire resistance, and additional  reinforcement required for crack control in exposed application.

Fire Resistance

 Composite slabs have excellent fire resistance and can achieve upto 120minutes fire resistance with simple provision of mesh reinforcement. The exact period of fire resistance is  dependent on: the slabdepth:the deck profiles;size of reinforcement and whether normal or light weight concrete is used. Longer fire resistance period can be achieved by placing  additional reinforcing bars in the ribs.

Acoustic Performance

 The acoustic performance of composite slabs with typical floor coverings is normally adequate for office or other work applications. In applications where a higher degree of acoustic  insulation is required, such as apartment buildings, hotels and hospitals, additional insulation can be provided. The incorporation of resilient layers, or a concrete screed, can enable the  floor to more than meet the requirements of the Buildings Regulations. Sound reduction of 62dB(airborne) and 50dB (impact) are really achievable.

Durability

 Steel decking is normally galvanized with a standard G275 coating. The galvanized layer is not damaged during forming and provides suitable protection and durability for applications not  subject to direct weathering, or in moderate exposure conditions. We offer special corrosion resistant 'ZAM' steel (a product of Nissan Steel, Japan) which has life of more than 3-4 times  then galvanized coating.

 Where the decking is used in exposed or damp conditions, additional measures should be provided to prevent corrosion, or the decking should be considered as permanent formwork  only.

Advantages:

Value benefits of composite Floors

 • Overall lower initials costs

    • High load capacity

    • Safe working platform

    • Fast construction

    • No temporary propping

    • Allow long span

Applications

    • Residential

    • Refurbishment

    • Industrial

    • Commercial

    • Buildings extensions

    • Multi-Storey buildings

    • Leisure facilities

Multi-Steel Deck™
Multi-Steel Deck™

  Using composite deck floors can lead to initial cost savings of between 7% and 12% when compared to alternative solutions.

Better value for clients is achieved through:

TIME RELATED SAVINGS

 Significant time savings can be made due to the rapid speed of construction. Construction periods for the framework can be reduced by 50%, leading to savings of site preliminaries, and  interest charges.

REDUCED FOUNDATION COST

 Foundation cost can be reduced by at least 20% because of the composite slabs light weight.

SERVICE INTEGRATION

 Service can be located between and through the steel beams. Openings can be provided in the slabs.

INCREASED FLOOR AREA

 Long span solutions decrease the number of columns required, thus increasing the overall floor area which is available. Flexibility of internal layout is also greatly enhanced.

SAVINGS ON CLADDING COSTS

 Total building height decreases by typically 5% because of the shallow floor depth, reducing the overall cladding area and therefore cost. Cladding attachments can be made easily to the  slabs.

WHOLE LIFE BENEFITS

 Thermal and acoustic performance, fire resistance, durabilty, benefit the whole life value of the buildings.

ROBUST PERFORMANCE

 Composite slabs are robust to impact, and can support high loading for all applications, including industrial buildings.

In-Service Benefits

 Attachments for services can be provided into which special hangers can be fitted. Cladding can also be easily attached using special edge trims. Composite floors decks are a high  quality product. Together, the mesh reinforcement and decking, control shrinkage and crackings of the concrete. The possibility of using long spans gives the occupier flexibility in internal  floor layout and maximizes the amount of space.

ENVIRONMENT BENEFITS

 Two important aspects of sustainable constructions are reduction in raw materials use and the increase in the recycled content. Steel as material is 100% recyclable and because steel  composite deck floors are light in weight, fewer raw materials are consumed. Foundations are less complex and costly. When composite slabs are compared to other forms of  construction, there is less disruption to site activities, and also the amount of material wastage is significantly reduced.

 More than 500,000 m2 installed all over India.

 Some major prestigious projects are mentioned here:

    • Adani power 120,000 m

    • Mumbai International Airport 110,000 m

    • NTPC Power Plant 90,000 m

    • Hero Motors 65,000 m

    • Maruti 45,000 m



    • Maruti Joint Venture 15,000 m

    • Jindal Stainless Steel, Orissa 15,000 m

    • Tata Steel Kalinga Nagar 12,500 m

    • NV Distallary 9500 m

    • IIT Mandi 6500 m
