Multi-Steel Deck®51-L

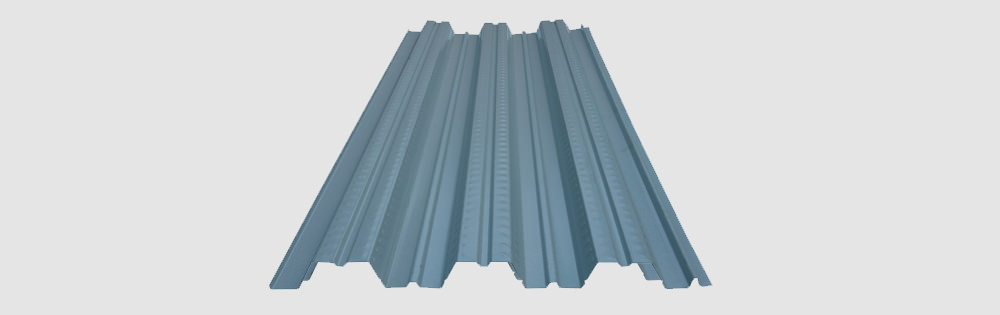

Multi-Steel Deck®51-L Structural Steel composite Floor System

The Strength

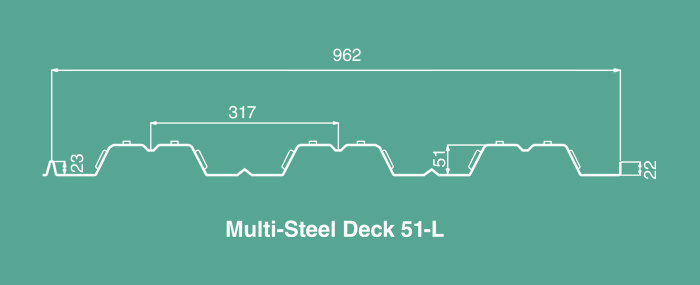

Multi Steel Floor Deck Panels; 51mm deep crest at 317mm distances having special embossment, rolled in to the profile created the highest bond between concrete and the steel floor, together with the smaller ribs and flutes enhances our product's composite action rigidity.

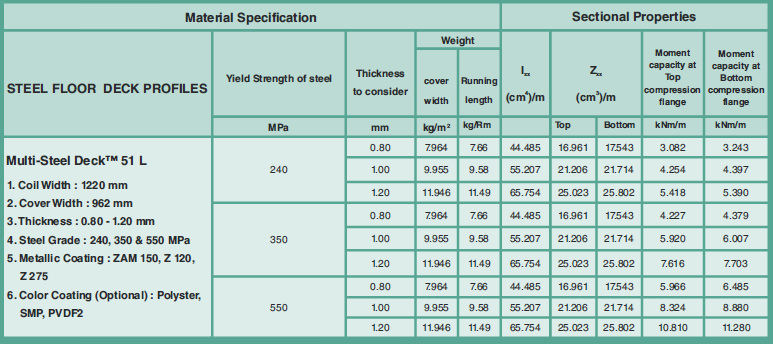

Specifications


Multi Steel Floor Panel is produced from Galvanized steel Z275 (zinc 275gm/m2) and ZAM 150 (Zinc Aluminium Magnesium coated steel from Nisshin Steel, Japan) with the option of Color Coated Galvanized Steel produced in the thickness 0.8mm, 1mm and 1.2mm. Available in steel grade 240 - 550 mpa

Multicolor Steels recommends use of ZAM steel which has life 3-4 times more than galvanized coated steel.

Multicolor steels recommends use minimum 550 mpa steel for better strength
