ZAP 88™

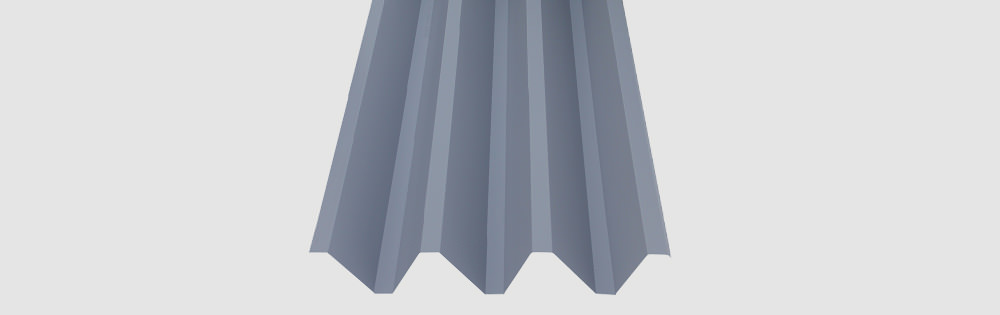

ZAP 88™ roofing system is proven and sturdy Japanese technology. It is a 88mm deep trapezoidal profile with very strong tight frame method of fixing and can be formed up to single length of 100mts.

Available in Galvalume and color coated steel in various colors. More than 200,000 sqm installed for projects like Maruti-Suzuki, Musashi Auto Parts, Samtel Color, Moser Baer,

• Time tested and proven Japanese technology.

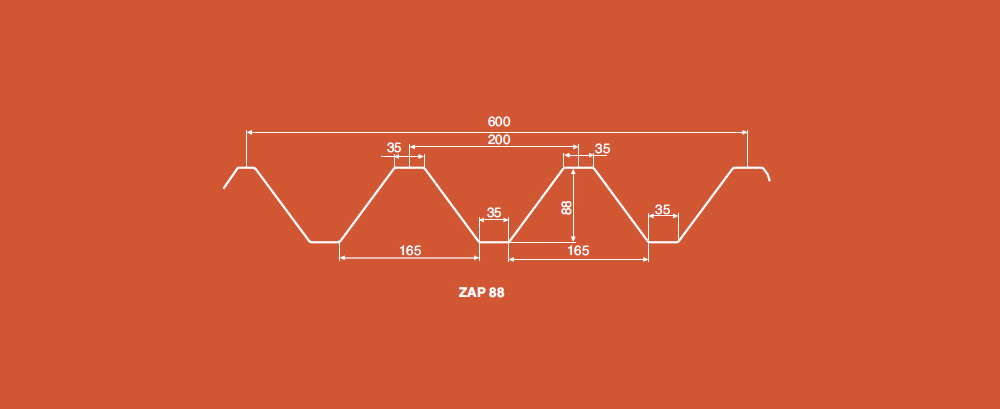

• Robust Design: Depth of 88mm and 200mm pitch supported on galvanized steel tight frames makes it very sturdy roof system. It can span up to 3-4mts. making roof structure more economical and lighter.

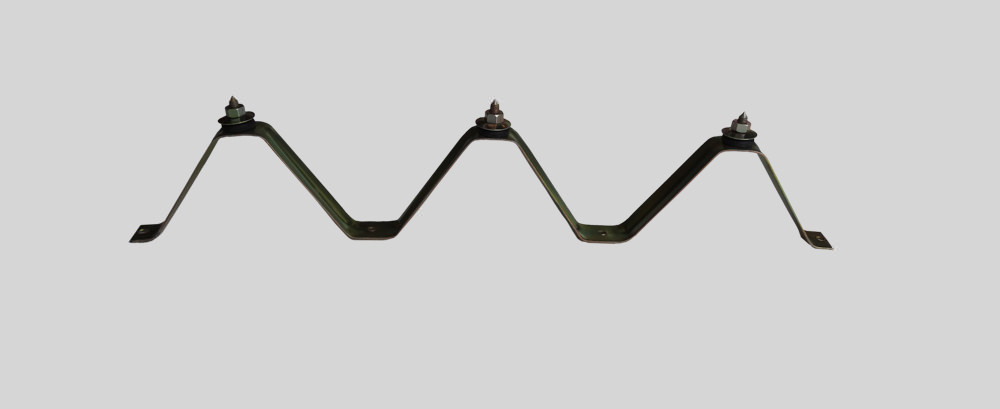

• Fitted on tight frame system, it has high stability against wind velocity and uplift pressure which is fixed on purlin.
• Watertight: An exactitude engineered roofing system. The deep profile of 88mm making it impossible for the water to overflow the fasteners and side laps of roof and further end laps are avoided by single length sheet up to 100mts, making it a total leak proof roof.
• High water shedding ability enabling virtually flat roof as low as 1º Slope.
• Handsome appearance and excellent anti-corrosion performance.
• Outstanding durability and is suitable for extreme weather conditions.
• Maintenance free.
• Will last virtually a lifetime.
• Matching light panels of FRP / Polycarbonate available.
• Option of under deck insulation of resin bonded glass wool / mineral wool.
• Application: Factory Buildings, Warehouses, Institutional Buildings etc.
